Vertex AerationJet Commercial Floating Fountain

High-Performance Fountain for Large-Scale Water Features

The Vertex AerationJet Floating Fountain is engineered for large commercial and municipal applications, including golf courses, business parks, resorts, and lakes. Designed for powerful, visually striking displays, the AerationJet delivers towering, aerated jets up to 45 feet high and 40 feet wide, combining dramatic aesthetics with efficient performance and long-term reliability.

Built with corrosion-resistant stainless steel components, a UL-listed control panel, and a heavy-duty turbine pump, this fountain is designed to withstand demanding outdoor conditions while maintaining consistent, efficient operation. Its precision-engineered nozzles and balanced spray pattern make it a stunning focal point in any large-scale landscape.

Key Features

Floating fountain built for commercial and municipal installations
Available in 5 HP, 7.5 HP, 10 HP, 15 HP, 20 HP, and 30 HP
Produces a tall, aerated display with superior wind resistance
Energy-efficient turbine motor with low amp draw
Corrosion-resistant stainless steel construction throughout
UL-listed, weatherproof control panel included
Maintenance-free water-cooled design – no oil, seals, or O-rings to replace

Spray Performance

Motor (HP)	Center Height	Side Height	Spray Diameter
5 HP	20 ft	10 ft	20 ft
7.5 HP	25 ft	12 ft	25 ft
10 HP	30 ft	15 ft	30 ft
15 HP	35 ft	20 ft	33 ft
20 HP	40 ft	20 ft	35 ft
30 HP	45 ft	25 ft	40 ft

Recommended LED Lighting Packages

5 HP & 7.5 HP – 8 lights
10 HP – 9 lights
15 HP – 10 lights
20 HP & 30 HP – 11 lights

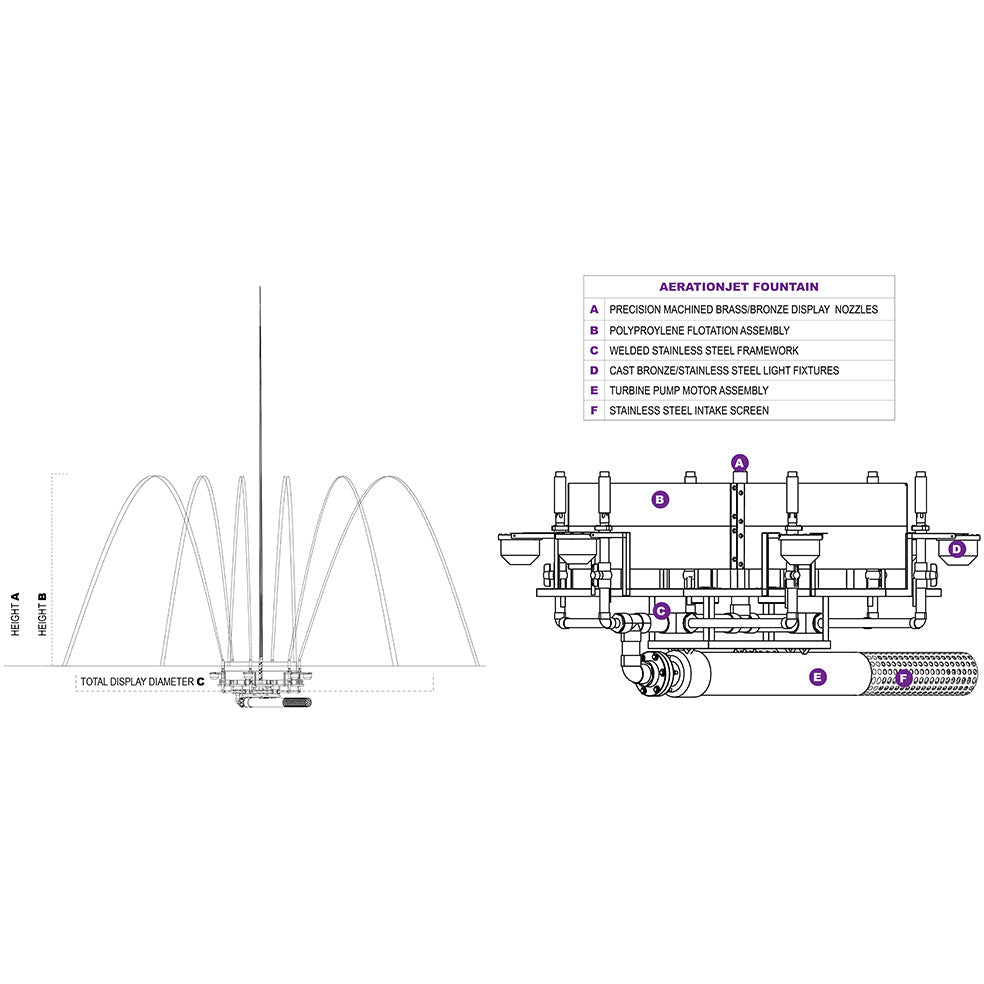

Construction Details

Nozzles

Precision-machined brass, bronze, or stainless steel

Pump & Motor Assembly

High-performance turbine design
Stainless steel construction
Water-cooled motor (no oil or seals to maintain)
4-year warranty

Floatation System

Rotocast polypropylene float with UV inhibitors
Adjustable leveling compartments for stability
4-year warranty

Control Panel

UL listed, weatherproof steel housing
Designed per National Electrical Code standards

LED Light Fixtures (optional)

43W, 120V stainless steel fixtures
Tempered lens with neoprene gaskets
140 lumens per light
2-year warranty

Warranty Coverage

Component	Warranty Period
Display Heads	4 Years
Pumps & Motors	4 Years
LED Lighting	2 Years
Control Panel	1 Year

All Vertex fountains undergo rigorous quality control and testing to ensure durability and consistent performance in real-world conditions.

Technical Specifications

Minimum Water Depth

HP	Minimum Depth
5	4 ft
7.5	5 ft
10	6 ft
15	7 ft
20	7 ft
30	8 ft

Electrical (230V, 60Hz)

HP	Wattage	Amp Draw	Phase Options
5	344W	4A	1 or 3
7.5	344W	4A	1 or 3
10	387W	4.5A	1 or 3
15	430W	5A	1 or 3
20	473W	5.5A	3
30	473W	5.5A	3

Cabling

Power cable not included in listed price.
Available in 25 ft increments, STW-A rated with 4-year warranty.
See Vertex cable charts for maximum lengths by voltage and wire gauge.

Documentation

Vertex AerationJet System Specifications
Vertex Fountain Owners Manual
